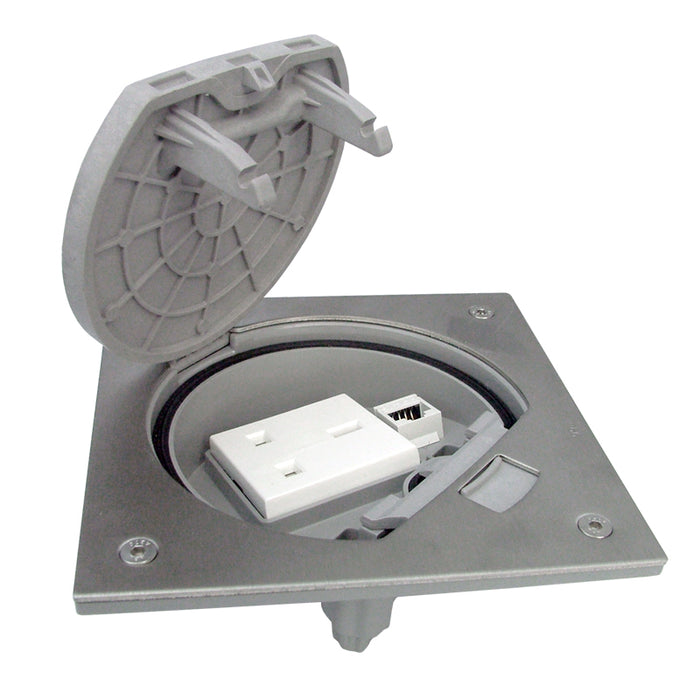

KSE15U/23/72 - Support Mechanism with Standard Lock & Data Port - Stainless Steel

KSE15U/23/72 - Support Mechanism with Standard Lock & Data Port - Stainless Steel

SKU KSE15U/23/72 - 13A UK Socket
£83.60 - £99.40
£99.40
(Ex. Vat)
£83.60 - £99.40
£99.40
Socket Options: 13A UK Socket (5721-11)
  • Stainless steel support unit including 13A UK power socket (other socket options available)
  • Ideal for open or outdoor areas which require occasional power connection
  • Standard Lock Mechanism
  • 1 x RJ45 Data Port (Cat5e)
  • Safety cover - hinge opens to less than 90 degrees so lid cannot be left open accidentally
  • Unit offers IP66 Level protection from the elements
  • Tray includes a wooden cover that prevents any dirt getting inside the box during installation
  • Can be grouped together using connection accessory model no: ACSE
  • Max load when in closed position 1000kg
  • Max loading 170Kg when lid is open and connected, strong enough to withstand pedestrians while protecting cables from pressure and stress
  • Finished in Brass
  • Includes protective film to protect box surface during installation

Note: To be used in conjuction with Base section KGE170TF/23 (raised floor) or KGE170/23 (screed floor).

Model:
KSE15U/23/72
Dimensions:
130mm x 130mm
Power:
1 x Socket (various options)
Data:
1 x RJ45 Data Port (Cat5e)
Colour:
Stainless Steel
Max Loading (Closed):
1000kg
Max Loading (Open):
170kg
