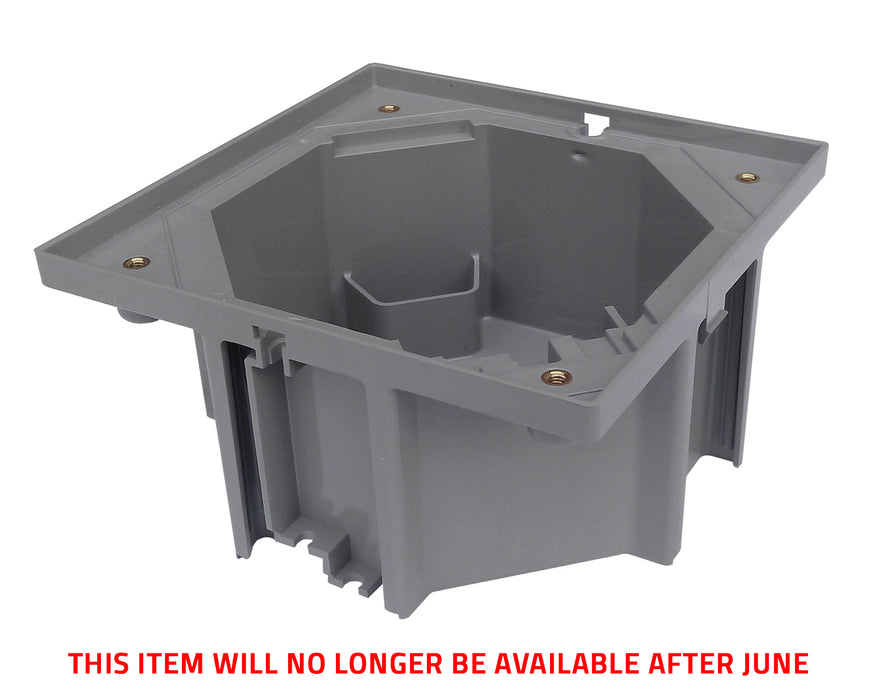

KGE170/23 - Tray for Screed/Concrete Floor Installation
SKU KGE170/23
Original price
£35.00
-
Original price
£35.00
Original price
£35.00
(Ex. Vat)
£35.00
-
£35.00
Current price
£35.00
- Base Section for screed / concrete floor Flush installation of the box in all types of screed floors (concrete, porcelain, terrazzo, ceramic etc..)
- Screed trays can be grouped to create multiple connections in one area
- Can be installed in: yards, concrete floors, patios etc
- Optional drainage pipe can be installed to drain away any possible condensation inside the box
- Tray includes a wooden cover that prevents any dirt getting inside the box during installation
- Can be grouped together using connection accessory model no: ACSE
- Max load when in closed position 1000kg
- Max load when in open position 170kg
- Finished in Grey
Model:
KGE170/23
Floor Cut Out:
135mm x 135mm
Minimum Depth:
70mm
Colour:
Grey
Max Loading (Closed):
1000kg
Max Loading (Open):
170kg
