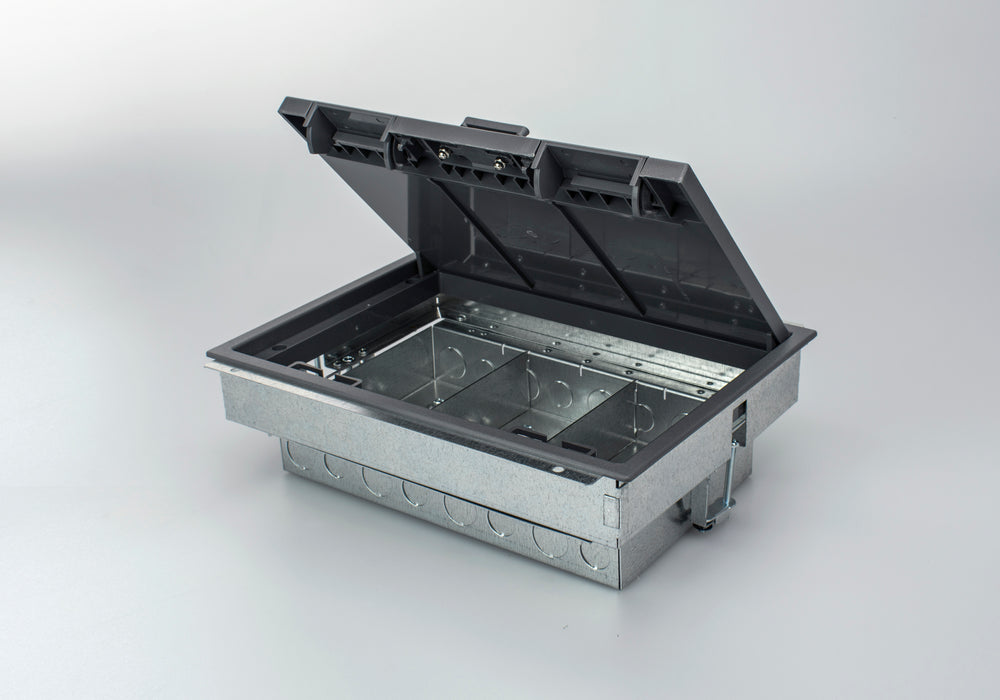

TFB3/90 Cavity Floorbox

SKU TFB3/90
Original price £22.40 - Original price £22.40
Original price
£22.40
(Ex. Vat)
£22.40 - £22.40
Current price £22.40
  • Floor box manufactured from galvanised steel
  • Standard depth 90mm designed to accepts standard accessory plates from electrical wholesalers
  • 20mm & 25mm knockouts to accept flexible conduit
  • Galvanised lid insert for strength
  • Easy grip recessed lifting handle
  • Compact design 303 x 221mm floor cut-out
  • Clamp fixing for speed of installation
  • Large range of accessory plates, colour equivalent: RAL7035
  • Suitable for carpeted floors only with standard Frame & Lid
  • Clean Earth Sockets available
  • IP Rating: IP20
  • Cat6 compatible floor box require wave data plates or angled modules, using Cat6 non booted patch leads will minimise The bend radius of the data cable
  • ABS Frame & Lid fire rating UL94 HB Halogen Free
  • Fire rating Euro Class E-F Class 4 None Tested
  • ABS Plastic Frame & Lid Load Test 550 KG
  • Steel Frame & Lid Load Test 740 KG
Model:
TFB3/90
Floor Cut Out:
303mm x 221mm
Floor Box Depth:
90mm
Plug Top Clearance:
38mm
Overall Frame & Lid:
313mm x 230mm
Frame Lid Recess:
6mm
Accessory Plate:
185mm x 89mm
  • Accessory Plate Options
  • Alternative Frame & Lid Options
